What are we quoting?

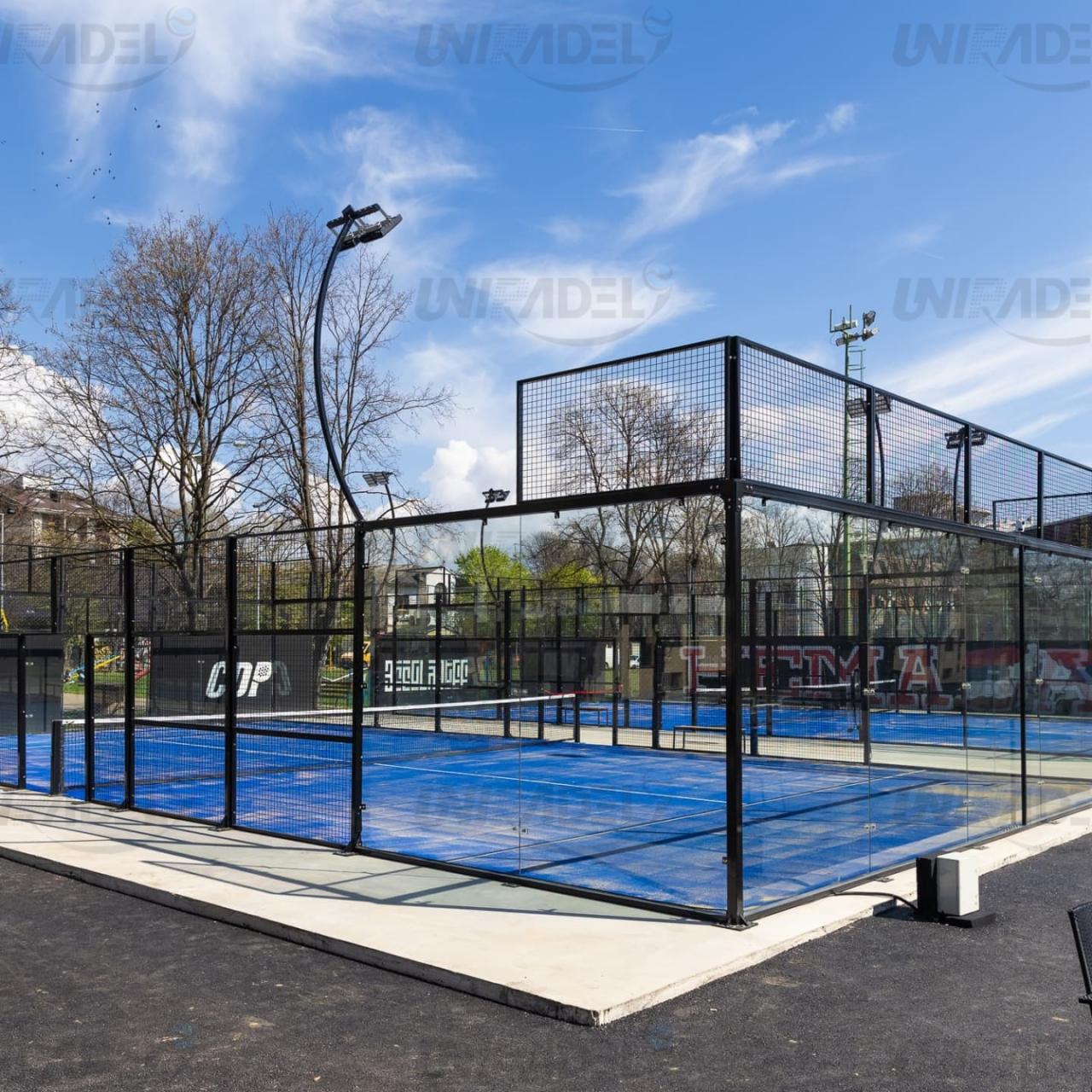

Open the Court Builder for any court we build — padel included.
1. Court footprint
Total fenced area — this drives base, fiberglass, acrylic and fence quantities.
2. Court colour
Real Laykold shades, sampled directly from your Laykold Tournament Color Card. Default scheme below matches Laykold's official APP Tour pickleball colours (grey inside, light blue outside & kitchen).
Kitchen (non-volley zone) spans 14 ft total — 7 ft on each side of the net, including the boundary lines. Laykold's official APP Tour scheme uses the same colour for kitchen and outside — hover any swatch for its real name.
3. Fence openings
Start and stop the fence wherever you need — add an opening per gap, set its side, position, and width. Fence footage and door pricing update automatically.
3b. Fence height
Pickleball defaults to 4'. Pick 10' when the customer wants a tall containment fence (e.g. behind the baselines) — same catalogue pricing as Tennis.
4. Lighting (LTCS-460W / LTCS-560W)
Drag each pole marker on the court plan to its exact spot — measurements from the nearest fence lines show automatically.
5. Net
6. Basketball goals — Dominator 72" Aluminum
Drag each goal along its baseline on the court plan, or set its side and position here.
7. Notes
- This tool mirrors the pricing schedule in the Agile Courts budgetary quotation. It's a working estimate, not the formal contract quotation.
- Asphalt base, fiberglass reinforcement, and the Laykold 5 Coat acrylic surface are priced across the full fenced footprint.
- Excludes permits, engineering/survey fees, electrical hookup to poles, demolition, and difficult site access unless itemised above.
- Final quantities are confirmed after site survey.
- Basketball markings use high-school (NFHS) dimensions — 19' free-throw line, 12' lane, 19'9" three-point arc. On a single-court pickleball footprint the three-point line will typically extend past the fence — useful for spotting when a wider pad is needed.
Court plan — draw to scale
Drag the corner handle to size the fence line, or type exact feet on the left. Dimensions on every side update automatically.
Pricing schedule
Enter your unit prices — subtotals and the estimated total update as you type.
| Incl. | Item | Unit | Qty | Unit price | Subtotal |
|---|---|---|---|---|---|
| Estimated total | $0 | ||||
Budgetary Quotation & Specification Summary
| Quote no. | Date | Prepared for | Valid until |
|---|---|---|---|
| AC-PB-______ | [Date] | [Client Name] | 30 days from date above |
Thank you for considering Agile Courts for your pickleball court project. This quotation outlines the standard construction system, materials, and estimated pricing for a new pickleball court, based on the information provided to date. This document is a preliminary, budgetary quotation intended to give you a clear picture of scope and investment level — it is not a final contract.
The best materials, without exception
Laykold 5 Coat Acrylic Surface
The official surface of the US Open. Premium playability, vibrant colour retention, and up to 10 years of high-performance play.
- ISO 9001:2015 certified manufacturer
- Fiberglass-reinforced to resist reflective cracking
- Two-tone colour schemes at no extra design cost
- 1-year limited material warranty
Bespoke Agile Courts Aluminium Fence
Marine-grade aluminum, clean-lined and made for the coast. A long-term investment in curb appeal and low maintenance.
- No-weld aluminum alloy clamp system (single-side, double-side & corner clamps)
- PE-coated mesh, 9/64" wire diameter, 1¾" × 1¾" mesh
- Terminal posts Ø3" aluminum tube (5/32" wall); intermediate posts Ø2-3/8" (1/8" wall)
- Die-cast aluminum post caps
- Posts set in 4" I.D. sleeves cast into a 12"×12" concrete curb — the Agile Courts standard curb
Anti-Glare LED Court Lighting — LTCS-460W
Stadium-quality illumination for night play, engineered to control glare and light spill for players, neighbors, and everyone nearby. A brighter LTCS-560W is also available for larger courts.
- 80,800 lumens, Lumileds 5050 illuminant, 460W system power
- T1/T2/T3 anti-glare optical distribution
- Selectable 4000K/5000K/5700K colour temperature, CRI 70/80/90
- IP66-rated die-cast aluminum housing, >50,000 hour rated life
- CE and RoHS certified
Regulation Net & Post System
Tournament-grade net and post hardware, set to regulation height and tension for true, consistent play from day one.
- Regulation height & tension
- Corrosion-resistant hardware
1. System specification
Your court is built as a complete, engineered system — from the compacted base through the playing surface, fencing, and lighting. Below is the standard Agile Courts pickleball build. Full manufacturer specification sheets are available on request.
1.1 Aggregate sub-base
- Graded aggregate base constructed to FDOT Standard Specification Section 204 (Graded Aggregate Base).
- Provides the load-bearing platform and drainage layer beneath the asphalt court base.
- Perimeter drainage built to the Agile Courts standard curb detail.
1.2 Asphalt court base — Agile Asphalt Caribbean Court Base System
- Agile Asphalt — our own court base, made for sports courts and for Caribbean heat, salt air and rain.
- Laid and compacted by our own crews over a compacted aggregate base or a sound concrete slab.
- Finished smooth and true, ready to take the acrylic surface system above.
1.3 Playing surface — Laykold 5 Coat Acrylic System
Laykold is widely regarded as the best-quality acrylic surfacing system on the market — trusted on resort, club, and tournament courts worldwide for its premium playability, colour retention, and durability. Properly installed and maintained, it's built to deliver up to 10 years of vibrant, high-performance play.
- Multi-layer acrylic surfacing system by Advanced Polymer Technology (Laykold) — the ISO 9001-certified industry leader in sports-surface coatings.
- Fiberglass reinforcement layer built into the system to help prevent reflective cracking from the base below and add years of extra longevity to your court.
- System build-up — five coats: two coats of Laykold Acrylic Resurfacer, the fibreglass reinforcement laid into the first while it is wet for excellent adhesion, then three coats of Laykold ColorCoat Concentrate textured colour. Lines in Laykold Line Prime and Laykold Textured White Line Paint. Cured and inspected between coats.
- Colour selected by owner from the current Laykold product colour chart; two-tone playing area / out-of-bounds colour scheme available at no extra design cost.
- Regulation pickleball court lines painted with Laykold Textured White Line Paint, primed with Laykold Line Prime.
- Backed by the manufacturer's one-year limited material warranty (subject to installation and maintenance conditions in the Laykold ColorCoat specification).
1.4 Fencing — Bespoke Agile Courts aluminium fence
Your court is enclosed in a premium-grade aluminum fence — clean-lined, light, strong and low-maintenance, and nothing like standard steel chain-link.
- Perimeter fencing 4'-0" high, marine-grade aluminum-tube frame with PE-coated mesh (9/64" wire diameter, 1¾" × 1¾" mesh).
- Terminal posts: Ø3" aluminum tube (5/32" wall); intermediate posts: Ø2-3/8" aluminum tube (1/8" wall), with die-cast aluminum post caps.
- Aluminum alloy clamp system (single-side, double-side, and corner clamps) — no welding required.
- Posts set in 4" I.D. PVC sleeves, minimum 10" deep, cast into the 12"×12" concrete curb to the Agile Courts standard curb detail, or core-drilled into an existing concrete curb.
- Aluminum-frame single or double-leaf access door(s) available — 3" × 2" aluminum door frame tube, 2-3/8" × 2" aluminum door leaf profile, sized to suit court layout.
1.5 Court lighting — Anti-glare LED lights (LTCS-460W / LTCS-560W)
- High-power LED sports/area flood light, available in 460W or 560W system power, 80,800 lumens output (Lumileds 5050 illuminant).
- Engineered anti-glare T1/T2/T3 three-way optical light distribution controls spill/glare.
- Selectable colour temperature (4000K / 5000K / 5700K) and CRI (70 / 80 / 90).
- IP66-rated, high-density die-cast aluminum housing; rated average life > 50,000 hours; CE and RoHS certified.
- Fixture on a 3' davit arm (a 3' 180° arm carries two fixtures back to back between two courts) on an aluminum lighting pole, standard height 20'.
- Pole foundations are not included. The concrete foundation for each pole is by others, built to the Agile Courts standard light pole footing detail supplied with this quotation.
- Electrical connection to power source by others / licensed electrical contractor, unless separately quoted.
2. Court dimensions for this quote
- Playing surface (lines): 20' × 44'
- Fenced area (this quote): 30' × 60'
3. Pricing schedule
| Item | Unit | Qty | Unit price | Subtotal |
|---|---|---|---|---|
| Estimated total | $0 | |||
Pricing excludes (unless separately itemised above):
- Permits, impact fees, and engineering/survey fees.
- Concrete foundations for light poles (by others, to the Agile Courts footing detail), and electrical hookup from property power source to light poles.
- Demolition or removal of existing structures, courts, or vegetation.
- Site access costs for difficult/remote locations.
- Lodging, car rental and local transport for the Agile crew — provided by the client.
4. Important notes
- This is a budgetary estimate based on standard specifications and information available at the time of preparation, subject to confirmation by site visit/survey.
- Final court dimensions, quantities, colours, and lighting specification will be confirmed with the client in writing prior to contract.
- Should you decide to proceed, Agile Courts will issue a formal Contract and itemised Quotation reflecting confirmed site measurements, selected colours/models, and payment schedule. No construction begins until the contract is signed and any required deposit received.
- Quotation valid for 30 days from the date shown above.
1. Court footprint
Total fenced area — this drives the base, the surface and the fence quantities.
2. Playing surface
Pick the system. The base and surface lines below change with it — a clay court has no asphalt or fiberglass, and turf is laid on compacted aggregate. Fence, lights and net stay as they are.
2b. Base build-up
What the asphalt goes on. This changes what we price and what the client is responsible for.
3. Court colour
Real Laykold shades, sampled directly from your Laykold Tournament Color Card — the same full palette as the Pickleball calculator. Default matches the US Open scheme (green outside, blue inside) — hover any swatch for its real name.
4. Fence openings
Start and stop the fence wherever you need — add an opening per gap, set its side, width, and gate.
5. Fence
Leave the length blank to keep using the perimeter drawn above, minus the gate openings. Type a number to override it.
Standard tennis core: 240 lf of 10' on the ends, 120 lf of 4' down the sides. Gates as standard: one 4’7″ wide personnel gate at the centre and one 7’ wide gate on one end — current gates are 8’1″ high.
6. Lighting (LTCS-460W / LTCS-560W)
Drag each pole marker on the court plan to its exact spot — measurements from the nearest fence lines show automatically.
7. Net & add-ons
8. Basketball goals — Dominator 72" Aluminum
For combo courts — drag each goal along its baseline, or set its side and position here.
9. Notes
- This tool mirrors Agile Courts' standard pricing schedule. It's a working estimate, not the formal contract quotation.
- Asphalt base, fiberglass reinforcement, and the Laykold 5 Coat acrylic surface are priced across the full fenced footprint.
- Excludes permits, engineering/survey fees, electrical hookup to poles, demolition, and difficult site access unless itemised above.
- Net pricing has not been confirmed yet — set the unit price directly in the pricing schedule below.
- Final quantities are confirmed after site survey.
Court plan — draw to scale
Drag the corner handle to size the fence line to scale, or type exact feet on the left. Grid = 5 ft.
Pricing schedule
Enter your unit prices — subtotals and the estimated total update as you type.
| Incl. | Item | Unit | Qty | Unit price | Subtotal |
|---|---|---|---|---|---|
| Estimated total | $0 | ||||
Not in the catalogue? Add it anyway
Use this for a one-off. It is marked typed in on the schedule so it is obvious later that the price did not come from the catalogue.
Budgetary Quotation & Specification Summary
| Quote no. | Date | Prepared for | Valid until |
|---|---|---|---|
| AC-TN-______ | [Date] | [Client Name] | 30 days from date above |
Thank you for considering Agile Courts for your tennis court project. This quotation outlines the standard construction system, materials, and estimated pricing for a new tennis court, based on the information provided to date. This document is a preliminary, budgetary quotation intended to give you a clear picture of scope and investment level — it is not a final contract.
1. System specification
Your court is built as a complete, engineered system — from the compacted base through the playing surface, fencing, and lighting. Below is the standard Agile Courts tennis build. Full manufacturer specification sheets are available on request.
1.1 Aggregate sub-base
- Graded aggregate base constructed to FDOT Standard Specification Section 204 (Graded Aggregate Base).
- Provides the load-bearing platform and drainage layer beneath the asphalt court base.
- Perimeter drainage built to the Agile Courts standard curb detail.
1.2 Asphalt court base — Agile Asphalt Caribbean Court Base System
- Agile Asphalt — our own court base, made for sports courts and for Caribbean heat, salt air and rain.
- Laid and compacted by our own crews over a compacted aggregate base or a sound concrete slab.
- Finished smooth and true, ready to take the acrylic surface system above.
1.3 Playing surface — Laykold 5 Coat Acrylic System
Laykold is widely regarded as the best-quality acrylic surfacing system on the market — trusted on resort, club, and tournament courts worldwide for its premium playability, colour retention, and durability.
- Multi-layer acrylic surfacing system by Advanced Polymer Technology (Laykold) — the ISO 9001-certified industry leader in sports-surface coatings.
- Fiberglass reinforcement layer built into the system to help prevent reflective cracking from the base below.
- System build-up — five coats: two coats of Laykold Acrylic Resurfacer, the fibreglass reinforcement laid into the first while it is wet for excellent adhesion, then three coats of Laykold ColorCoat Concentrate textured colour. Lines in Laykold Line Prime and Laykold Textured White Line Paint. Cured and inspected between coats.
- Colour selected by owner from the current Laykold product colour chart; two-tone playing area / out-of-bounds colour scheme available at no extra design cost.
- Regulation tennis court lines (doubles & singles) painted with Laykold Textured White Line Paint, primed with Laykold Line Prime.
- Backed by the manufacturer's one-year limited material warranty.
1.4 Fencing — Bespoke Agile Courts aluminium fence
Your court is enclosed in a premium-grade aluminum fence — clean-lined, light, strong and low-maintenance.
- Perimeter fencing, marine-grade aluminum-tube frame with PE-coated mesh (6-gauge aluminum wire, 1¾" × 1¾" mesh), height per quote.
- Terminal posts: Ø3" aluminum tube; intermediate posts: Ø2-3/8" aluminum tube, with die-cast aluminum post caps.
- Aluminum alloy clamp system — no welding required.
- Posts set in 4" I.D. PVC sleeves, minimum 10" deep, cast into the 12"×12" concrete curb to the Agile Courts standard curb detail, or core-drilled into an existing concrete curb.
- Aluminum-frame single or double-leaf access door(s) available, sized to suit court layout.
1.5 Court lighting — Anti-glare LED lights (LTCS-460W / LTCS-560W)
- High-power LED sports/area flood light, available in 460W or 560W system power, 80,800 lumens output (Lumileds 5050 illuminant).
- Engineered anti-glare T1/T2/T3 three-way optical light distribution controls spill/glare.
- Selectable colour temperature (4000K / 5000K / 5700K) and CRI (70 / 80 / 90).
- IP66-rated, high-density die-cast aluminum housing; rated average life > 50,000 hours; CE and RoHS certified.
- Fixture on a 3' davit arm (a 3' 180° arm carries two fixtures back to back between two courts) on an aluminum lighting pole, standard height 20'.
- Pole foundations are not included. The concrete foundation for each pole is by others, built to the Agile Courts standard light pole footing detail supplied with this quotation.
- Electrical connection to power source by others / licensed electrical contractor, unless separately quoted.
2. Court dimensions for this quote
- Playing surface (lines, doubles): 36' × 78'
- Fenced area (this quote): 60' × 120'
3. Pricing schedule
| Item | Unit | Qty | Unit price | Subtotal |
|---|---|---|---|---|
| Estimated total | $0 | |||
Pricing excludes (unless separately itemised above):
- Permits, impact fees, and engineering/survey fees.
- Concrete foundations for light poles (by others, to the Agile Courts footing detail), and electrical hookup from property power source to light poles.
- Demolition or removal of existing structures, courts, or vegetation.
- Site access costs for difficult/remote locations.
- Lodging, car rental and local transport for the Agile crew — provided by the client.
4. Important notes
- This is a budgetary estimate based on standard specifications and information available at the time of preparation, subject to confirmation by site visit/survey.
- Final court dimensions, quantities, colours, and lighting specification will be confirmed with the client in writing prior to contract.
- Should you decide to proceed, Agile Courts will issue a formal Contract and itemised Quotation reflecting confirmed site measurements, selected colours/models, and payment schedule. No construction begins until the contract is signed and any required deposit received.
- Quotation valid for 30 days from the date shown above.
1. Sports on this court
Check which sports' lines to paint on this shared footprint. The base surface is priced once; each additional sport's line painting is a separate item below.
2. Court footprint
Total fenced area — sized for a shared tennis/pickleball footprint by default.
3. Court colour
Real Laykold shades, sampled directly from your Laykold Tournament Color Card — the same full palette as the Pickleball calculator. Kitchen colour only shows if pickleball lines are checked above — hover any swatch for its real name.
4. Fence openings
Start and stop the fence wherever you need.
5. Fence height
6. Lighting (LTCS-460W / LTCS-560W)
Drag each pole marker on the court plan to its exact spot.
7. Net & add-ons
8. Basketball goals — Dominator 72" Aluminum
9. Notes
- This tool mirrors Agile Courts' standard pricing schedule. It's a working estimate, not the formal contract quotation.
- Exact placement of overlapping line sets is finalized during layout/design — this diagram centers each sport's lines on the shared footprint for budgetary purposes.
- Asphalt, fiberglass, and the base Laykold 5 Coat acrylic surface are priced once across the full footprint regardless of how many sports are painted on it.
- Net pricing has not been confirmed yet — set the unit price directly in the pricing schedule below.
- Final quantities are confirmed after site survey.
Court plan — draw to scale
Drag the corner handle to size the fence line to scale, or type exact feet on the left. White lines = tennis, coral lines = pickleball.
Pricing schedule
Enter your unit prices — subtotals and the estimated total update as you type.
| Incl. | Item | Unit | Qty | Unit price | Subtotal |
|---|---|---|---|---|---|
| Estimated total | $0 | ||||
Budgetary Quotation & Specification Summary
| Quote no. | Date | Prepared for | Valid until |
|---|---|---|---|
| AC-MS-______ | [Date] | [Client Name] | 30 days from date above |
Thank you for considering Agile Courts for your multi-sport court project. This quotation outlines the standard construction system, materials, and estimated pricing for a new combination court, based on the information provided to date. This document is a preliminary, budgetary quotation intended to give you a clear picture of scope and investment level — it is not a final contract.
1. System specification
Your court is built as a complete, engineered system — from the compacted base through the playing surface, fencing, and lighting, with line sets for each sport painted on a single shared surface.
1.1 Aggregate sub-base
- Graded aggregate base constructed to FDOT Standard Specification Section 204 (Graded Aggregate Base).
- Perimeter drainage built to the Agile Courts standard curb detail.
1.2 Asphalt court base — Agile Asphalt Caribbean Court Base System
- Agile Asphalt — our own court base, made for sports courts and for Caribbean heat, salt air and rain.
- Laid and compacted by our own crews over a compacted aggregate base or a sound concrete slab.
1.3 Playing surface — Laykold 5 Coat Acrylic System
A single Laykold acrylic surface is applied across the full footprint, with each active sport's regulation lines painted on top in Laykold Textured White Line Paint (or a contrasting colour per sport where lines would otherwise overlap confusingly).
- Multi-layer acrylic surfacing system by Advanced Polymer Technology (Laykold).
- Fiberglass reinforcement layer built into the system.
- Colour selected by owner from the current Laykold product colour chart.
- Lines painted for: pickleball, tennis
1.4 Fencing — Bespoke Agile Courts aluminium fence
- Perimeter fencing, marine-grade aluminum-tube frame with PE-coated mesh, height per quote.
- Aluminum alloy clamp system — no welding required.
- Posts set in 4" I.D. PVC sleeves, minimum 10" deep, cast into the 12"×12" concrete curb to the Agile Courts standard curb detail.
- Aluminum-frame single or double-leaf access door(s) available, sized to suit court layout.
1.5 Court lighting — Anti-glare LED lights (LTCS-460W / LTCS-560W)
- High-power LED sports/area flood light, available in 460W or 560W system power, 80,800 lumens output.
- Rod-mount fixture on a fiberglass or aluminum lighting pole (standard height 20').
2. Court dimensions for this quote
- Fenced area (this quote): 60' × 120'
- Sports painted on this surface: Pickleball, Tennis
3. Pricing schedule
| Item | Unit | Qty | Unit price | Subtotal |
|---|---|---|---|---|
| Estimated total | $0 | |||
Pricing excludes (unless separately itemised above):
- Permits, impact fees, and engineering/survey fees.
- Concrete foundations for light poles (by others, to the Agile Courts footing detail), and electrical hookup from property power source to light poles.
- Demolition or removal of existing structures, courts, or vegetation.
- Lodging, car rental and local transport for the Agile crew — provided by the client.
4. Important notes
- This is a budgetary estimate based on standard specifications and information available at the time of preparation, subject to confirmation by site visit/survey.
- Exact line placement for overlapping sports will be finalized with the client prior to contract.
- Quotation valid for 30 days from the date shown above.
1. Courts in this project
Add one entry per court — mix Pickleball and Tennis freely. Each uses its own standard pricing; every unit price below stays fully editable.
2. Basketball goal add-on (project-wide)
Dominator 72" Aluminum Goal — for a shared hoop not tied to a specific court. Set the quantity and price directly in the pricing schedule below.
3. Notes
- This tool mirrors Agile Courts' standard pricing schedule. It's a working estimate, not the formal contract quotation.
- Each court is priced independently using its own standard rates — Pickleball and Tennis defaults match the dedicated calculators.
- This project view does not include a scaled site diagram — use the individual Pickleball or Tennis calculators if you need a to-scale drawing for a specific court.
- Final quantities are confirmed after site survey.
Pricing schedule
Grouped by court — enter your unit prices, subtotals and the estimated total update as you type.
| Incl. | Item | Unit | Qty | Unit price | Subtotal |
|---|---|---|---|---|---|
| Estimated total | $0 | ||||
Budgetary Quotation & Specification Summary
| Quote no. | Date | Prepared for | Valid until |
|---|---|---|---|
| AC-PR-______ | [Date] | [Client Name] | 30 days from date above |
Thank you for considering Agile Courts for your multi-court project. This quotation outlines the estimated pricing for each court in your project, based on the information provided to date. This document is a preliminary, budgetary quotation intended to give you a clear picture of scope and investment level — it is not a final contract.
1. Courts in this project
2. Pricing schedule
| Item | Unit | Qty | Unit price | Subtotal |
|---|---|---|---|---|
| Estimated total | $0 | |||
Pricing excludes (unless separately itemised above):
- Permits, impact fees, and engineering/survey fees.
- Concrete foundations for light poles (by others, to the Agile Courts footing detail), and electrical hookup from property power source to light poles.
- Demolition or removal of existing structures, courts, or vegetation.
- Site access costs for difficult/remote locations.
- Lodging, car rental and local transport for the Agile crew — provided by the client.
3. Important notes
- This is a budgetary estimate based on standard specifications and information available at the time of preparation, subject to confirmation by site visit/survey.
- Full manufacturer specification sheets for each court's construction system are available on request.
- Final court dimensions, quantities, colours, and lighting specification will be confirmed with the client in writing prior to contract.
- Quotation valid for 30 days from the date shown above.
1. Court footprint
Total fenced area — standard full basketball court.
2. Court colour
Real Laykold shades, sampled directly from your Laykold Tournament Color Card — the same full palette as the Pickleball calculator, plus basketball's Cardinal Red and Terracotta. Hover any swatch for its real name.
3. Fence height zones
Standard basketball fencing: 10' high across each end, returning down the sides for a set distance, then dropping to 4' along the middle of each side.
Fence openings placed on a side (left/right) are assumed to fall in the 4' middle section for pricing purposes.
4. Fence openings
5. Lighting (LTCS-460W / LTCS-560W)
Drag each pole marker on the court plan to its exact spot.
6. Basketball goals — Dominator 72" Aluminum
Standard is one goal at each end. Drag along a baseline, or set side and position here.
7. Notes
- This tool mirrors Agile Courts' standard pricing schedule. It's a working estimate, not the formal contract quotation.
- Asphalt base, fiberglass reinforcement, and the Laykold 5 Coat acrylic surface are priced across the full fenced footprint.
- 10' and 4' fence footage are calculated automatically from the footprint and return distance above.
- Acrylic surface pricing has not been confirmed yet — set the unit price directly in the pricing schedule below.
- Final quantities are confirmed after site survey.
Court plan — draw to scale
Drag the corner handle to size the fence to scale. Thick line = 10' fence, thin line = 4' fence.
Pricing schedule
Enter your unit prices — subtotals and the estimated total update as you type.
| Incl. | Item | Unit | Qty | Unit price | Subtotal |
|---|---|---|---|---|---|
| Estimated total | $0 | ||||
Budgetary Quotation & Specification Summary
| Quote no. | Date | Prepared for | Valid until |
|---|---|---|---|
| AC-BB-______ | [Date] | [Client Name] | 30 days from date above |
Thank you for considering Agile Courts for your basketball court project. This quotation outlines the standard construction system, materials, and estimated pricing for a new basketball court, based on the information provided to date. This document is a preliminary, budgetary quotation intended to give you a clear picture of scope and investment level — it is not a final contract.
1. System specification
Your court is built as a complete, engineered system — from the compacted base through the playing surface, fencing, and lighting.
1.1 Aggregate sub-base
- Graded aggregate base constructed to FDOT Standard Specification Section 204 (Graded Aggregate Base).
- Perimeter drainage built to the Agile Courts standard curb detail.
1.2 Asphalt court base — Agile Asphalt Caribbean Court Base System
- Agile Asphalt — our own court base, made for sports courts and for Caribbean heat, salt air and rain.
- Laid and compacted by our own crews over a compacted aggregate base or a sound concrete slab.
1.3 Playing surface — Laykold 5 Coat Acrylic System
- Multi-layer acrylic surfacing system by Advanced Polymer Technology (Laykold).
- Fiberglass reinforcement layer built into the system.
- Colour selected by owner from the current Laykold product colour chart.
- Regulation basketball court lines (key, free-throw line, three-point arc, half-court line) painted with Laykold Textured White Line Paint.
1.4 Fencing — Bespoke Agile Courts aluminium fence, dual height
Standard basketball fencing runs 10' high across each end and returns down the sides for a set distance, then steps down to 4' along the middle of each side — containing balls near the baskets while keeping cost down along the sidelines.
- Marine-grade aluminum-tube frame with PE-coated mesh (6-gauge aluminum wire, 1¾" × 1¾" mesh).
- Aluminum alloy clamp system — no welding required.
- Posts set in 4" I.D. PVC sleeves, minimum 10" deep, cast into the 12"×12" concrete curb to the Agile Courts standard curb detail.
- Aluminum-frame single or double-leaf access door(s) available, sized to suit court layout.
1.5 Court lighting — Anti-glare LED lights (LTCS-460W / LTCS-560W)
- High-power LED sports/area flood light, available in 460W or 560W system power, 80,800 lumens output.
- Rod-mount fixture on a fiberglass or aluminum lighting pole (standard height 20').
2. Court dimensions for this quote
- Fenced area (this quote): 60' × 105'
- Goal(s): one at each end, standard
3. Pricing schedule
| Item | Unit | Qty | Unit price | Subtotal |
|---|---|---|---|---|
| Estimated total | $0 | |||
Pricing excludes (unless separately itemised above):
- Permits, impact fees, and engineering/survey fees.
- Concrete foundations for light poles (by others, to the Agile Courts footing detail), and electrical hookup from property power source to light poles.
- Demolition or removal of existing structures, courts, or vegetation.
- Lodging, car rental and local transport for the Agile crew — provided by the client.
4. Important notes
- This is a budgetary estimate based on standard specifications and information available at the time of preparation, subject to confirmation by site visit/survey.
- Quotation valid for 30 days from the date shown above.
1. Programme and courts
The programme is priced per court, per year. Enter the courts at this property for each sport; the rates come from Agile Care settings and can be changed for this quote.
| Programme | Courts | Annual rate per court | Per year |
|---|---|---|---|
| Annual programme | $0 | ||
2. Membership — every programme
3. What each visit covers
The service checklist for each sport on the quote. It goes on the proposal, and the visit report is written against it.
Pricing schedule
One line per programme. Click a line's wording to change it; quantities and prices are editable.
| Incl. | Item | Unit | Qty | Unit price | Subtotal |
|---|---|---|---|---|---|
| Annual total | $0 | ||||
1. The court
"Caribbean" Padel Court — 150P-Panoramic, fixed 20m × 10m (65'7" × 32'10") footprint. Complete system: laminated glass, columns & fences, center post, LED lighting, installation accessories.
Installation only — the job
The client already has the court. This quotes Agile's crew, travel and the machines to install it. Prices come from Cost Items; quantities follow the courts, crew and days below and stay editable in the schedule.
3. The brochure specification
The Panoramic Padel brochure lists these four as standard on the 150P court, so they are ticked. Untick one only when you are deliberately quoting below the brochure. Quantities follow the number of courts above and stay editable in the pricing schedule.
2. Notes
- This tool mirrors Agile Courts' standard pricing schedule. It's a working estimate, not the formal contract quotation.
- Base system priced from our current supplier proforma invoice for the 150P-Panoramic Padel Court, with a 100% markup applied over landed cost — the price shown here is the client-facing list price only.
- Pricing excludes freight/shipping (base terms are EXW), duties, and site works (base preparation, light pole foundations, electrical hookup) unless separately itemised.
- Production lead time from the supplier is approximately 35 days from deposit.
- Final quantities and site-specific requirements are confirmed after site survey.
Caribbean Padel Court
Pricing schedule
Enter your unit prices — subtotals and the estimated total update as you type. Unchecked upgrades stay at qty 0.
| Incl. | Photo | Item | Unit | Qty | Unit price | Subtotal |
|---|---|---|---|---|---|---|
| Estimated total | $0 | |||||
Not in the catalogue? Add it anyway
Use this for a one-off. It is marked typed in on the schedule so it is obvious later that the price did not come from the catalogue.
Budgetary Quotation & Specification Summary
| Quote no. | Date | Prepared for | Valid until |
|---|---|---|---|
| AC-PD-______ | [Date] | [Client Name] | 30 days from date above |
Thank you for considering Agile Courts for your Padel court project. This quotation outlines the standard "Caribbean" Padel Court system — a complete panoramic-glass, prefabricated court kit — and estimated pricing based on the information provided to date. This document is a preliminary, budgetary quotation intended to give you a clear picture of scope and investment level — it is not a final contract.
1. System specification
Each court is a complete, engineered panoramic-glass system, imported as a prefabricated kit.
1.1 Playing surface — Agile Turf (Premier Pro-12)
- 209 sqm of 12mm, 100% PE premium yarn turf per court, with white marking lines woven in.
- 8-year outdoor lifespan; CE / UDEM EN 15330-1:2013 certified.
1.2 Structure — galvanized steel frame

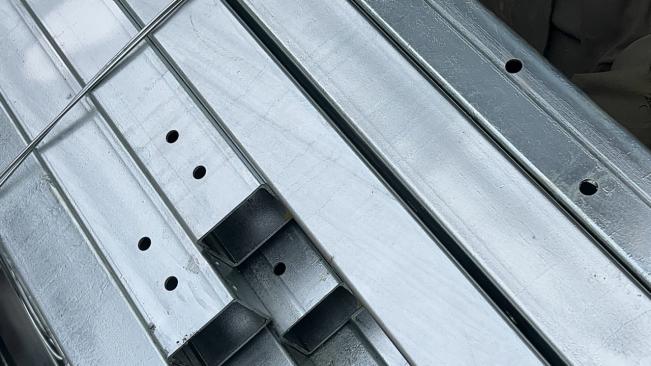

- High-quality hot-galvanized Q235 steel columns, crossbars, and light arms, with a zinc-rich primer epoxy + fluorocarbon polyester powder coating.
- Corner columns 150×150×5mm (5m); frame columns & light posts 100×100×3mm (3m); door frame posts 100×50×3mm (2m).
1.3 Enclosure — laminated glass & galvanized steel mesh

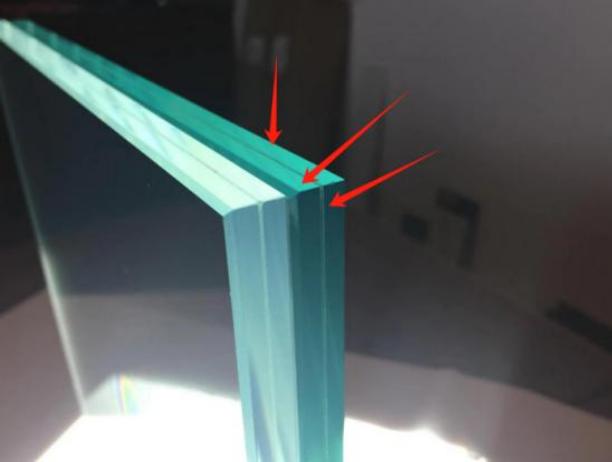

- Tempered laminated glass panels (standard 6/6; 8/8 available as an upgrade), CE / UDEM EN 12150-2:2004 certified.

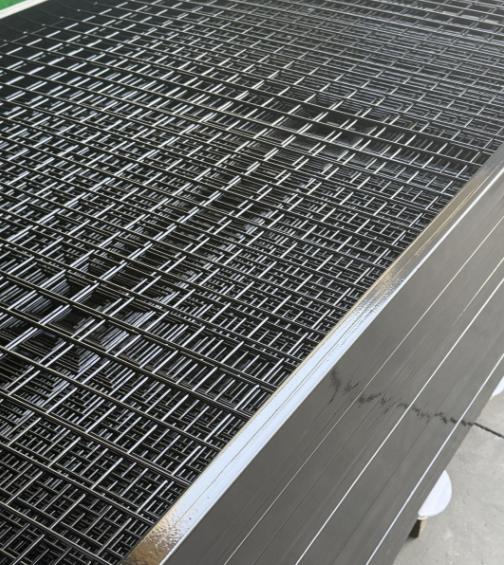

- Galvanized steel mesh panels with the same corrosion-resistant coating as the frame.
1.4 Lighting — LED court lighting
- High-power LED fixtures, IP66-rated, Philips 5050 light source, ≥50,000-hour design lifespan, 0-10V dimming.
2. Pricing schedule
| Item | Unit | Qty | Unit price | Subtotal |
|---|---|---|---|---|
| Estimated total | $0 | |||
Pricing excludes (unless separately itemised above):
- Freight/shipping from the supplier (base terms are EXW), duties, and customs clearance.
- Permits, impact fees, and engineering/survey fees.
- Site works: base/foundation preparation, light pole foundations, and electrical hookup to the court.
- Demolition or removal of existing structures, courts, or vegetation.
- Lodging, car rental and local transport for the Agile crew — provided by the client.
3. Important notes
- This is a budgetary estimate based on standard specifications and information available at the time of preparation, subject to confirmation by site visit/survey.
- Production lead time from the supplier is approximately 35 days from deposit; shipping/installation timeline is quoted separately.
- Quotation valid for 30 days from the date shown above.
1. The site plan
A PDF exported from CAD. The dimensions are read from the drawing's own text — the same strings you would read off it yourself. A scan or a photograph has no text in it, and you will be told so rather than given a made-up number.
2. What the plan says
Everything here is editable. Correct anything that looks wrong before it becomes a price.
3. What it could not read
Not failures — facts that are not written on the drawing. They are listed so you fill them in on purpose rather than find out later.
4. Price it
This opens the calculator for that sport with the court already sized from the plan. From there it is an ordinary quick quote — adjust anything, then Send to Proposal or generate the quote PDF exactly as you would for any other job.
1. Courts to be resurfaced
Add one entry per court — mix Basketball, Pickleball, Tennis, and Multipurpose freely. Width/Length default to that sport's standard footprint but are fully editable for a non-standard or shared-slab court. Fencing and lighting aren't part of this quote (the existing fence and lights stay in place) — every other standard option is available below.
2. Court colour
Real Laykold shades, sampled directly from your Laykold Tournament Color Card — the same full palette as the Pickleball calculator. The scheme chosen here applies to the new acrylic surface on every court in this quote and is listed on the printed quotation — hover any swatch for its real name.
Kitchen colour applies to pickleball courts in this quote only — other court types just use playing area and out-of-bounds.
3. Notes
- This tool mirrors Agile Courts' standard pricing schedule. It's a working estimate, not the formal contract quotation.
- Fence and lighting are intentionally left out of this section — a resurfacing job keeps the existing fence and light poles in place undisturbed, so there's no fence, fence door, or light pole option here. If a job also needs fence or lighting work, add it from that sport's own new-build screen instead.
- Crack Repair is a flat per-job estimate (patch materials + prep labour) rather than a per-square-foot rate — the Cost Catalogue doesn't yet have a per-linear-foot crack rate, so this is a placeholder figure until real site-measured pricing is available. Treat it as a starting point, not a final number.
- Asphalt Base, Fiberglass Reinforcement, and Acrylic Recoat all use the same real Cost Catalogue pricing as a new court build (Agile Asphalt system + installation; fiberglass membrane + installation; Laykold 5-Coat Acrylic Surface + installation) — resurfacing an existing court uses the identical material system.
- Net Replacement and Basketball Goal Replacement are materials-only (no separate installation labour item exists in the catalogue for either) — check these when a worn net or hoop needs swapping alongside the surface work. Basketball Goal Replacement defaults to a quantity of 2 (one per end) when checked; edit the Qty cell below for a single-hoop job.
- Court type only affects which court-type group each court's line items land in on the proposal's cost breakdown — pricing is the same regardless of sport.
- Final quantities are confirmed after site survey.
Resurfacing scope
Pricing schedule
Grouped by court — enter your unit prices, subtotals and the estimated total update as you type.
| Incl. | Item | Unit | Qty | Unit price | Subtotal |
|---|---|---|---|---|---|
| Estimated total | $0 | ||||
Budgetary Quotation & Specification Summary
| Quote no. | Date | Prepared for | Valid until |
|---|---|---|---|
| AC-RS-______ | [Date] | [Client Name] | 30 days from date above |
Thank you for considering Agile Courts for your court resurfacing project. This quotation outlines the standard resurfacing scope and estimated pricing for your existing court(s), based on the information provided to date. This document is a preliminary, budgetary quotation intended to give you a clear picture of scope and investment level — it is not a final contract.
1. Courts in this quote
Resurfacing work on existing courts only — the existing fence and lighting stay in place and are not part of this quote.
2. Pricing schedule
| Item | Unit | Qty | Unit price | Subtotal |
|---|---|---|---|---|
| Estimated total | $0 | |||
Pricing excludes (unless separately itemised above):
- Fencing and lighting — the existing fence and light poles stay in place and are not part of this quote.
- Permits, impact fees, and engineering/survey fees.
- Demolition or removal of existing structures, courts, or vegetation.
- Lodging, car rental and local transport for the Agile crew — provided by the client.
3. Important notes
- This is a budgetary estimate based on standard specifications and information available at the time of preparation, subject to confirmation by site visit/survey.
- Crack Repair (where included) is a flat per-job estimate, not a per-square-foot rate.
- Quotation valid for 30 days from the date shown above.
